Product Body Parameters :
Dimension: 800mm(L)*310mm(W)*120mm(H)

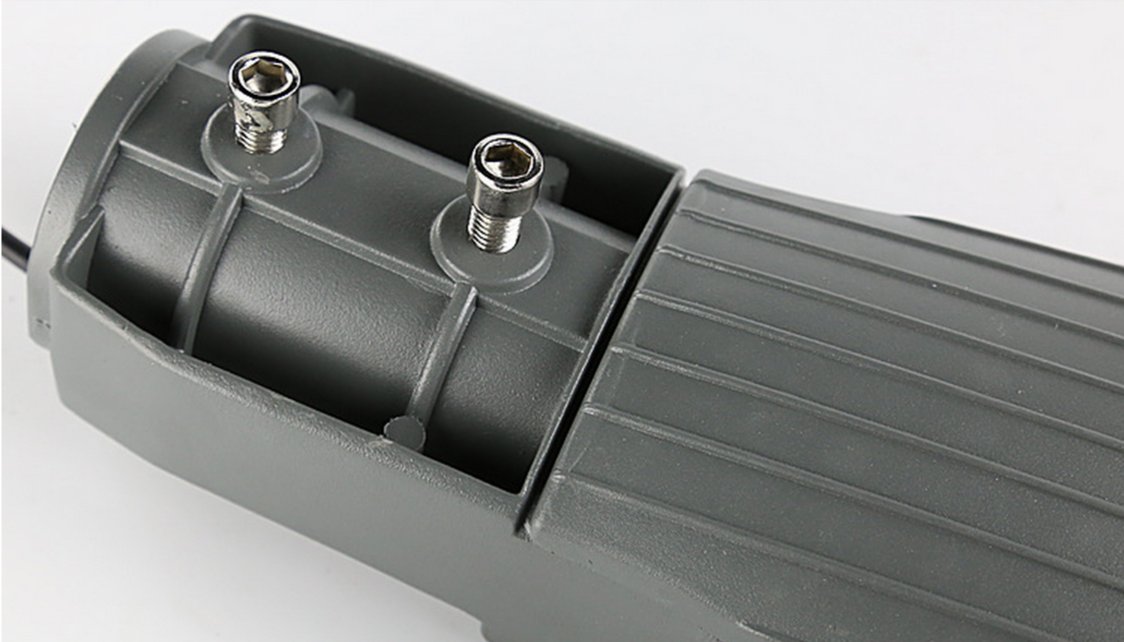

Installation : Fit diameter 60mm pole
IP rating: IP65
Housing color: Black /Grey
Housing Material: Aluminum Heat Sink + Glass Lens
Light Source: 3x( 100W COB led to be used as 50W)
COB led Brand: Epistar / Bridgelux
Driver Brand: PENEL / Meanwell
Electrical Parameters:
Input: AC 85-265V or AC 90-305V(Meanwell)
Power: 150Watt
PF:>0.95
Driver Efficiency: >90%
THD: <15% at full load
Optical Parameters:
Lumen Efficiency: 105 or 130 lm/w (2 version optional)
Total Lumen : 15750 lm or 19500 lm (2 version optional)
Color Temperature: 3000K /4000K/5000K/6000K
CRI: >70
Beam Angle : 120°
Lifetime: 50,000 hr
Other Function Options:
Can Do 12/24VDC Input
Can Add photo sensor
Certificate: TUV GS mark, CE-EMC, CE-LVD, ROHS
Warranty: 3 years (with PENEL driver) / 5 years (with MW driver)
Packing Parameters:
1 Unit /Carton
GW 12.89kg/carton
Carton Dimension: 37cm*88cm*22cm
Packing Filler: EPE Protection Packing
