LED High Bay Light

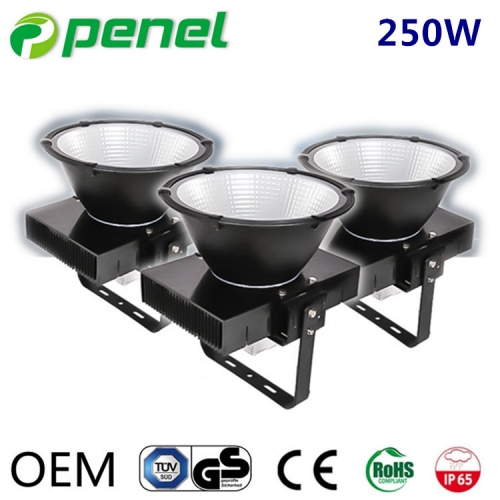

250W High Power Led High Bay Light for construction site lighting, industrial lighting

Item No.: HBL-250W-NS05
It's a high power series of led high bay light from 200  to 500watt , very suitable for construction site lighting , industrial lighting ,  illumination efficiency about 115lm/w,  beam angle 25°/60°/90° available, IP54 waterproof,  5 years warranty .
Add to Inquiry
Description More PIctures

Product Feature:


1.  Excellent heat conductivity.

2.  The transmittance is up to 92%.

3.  Use toughened glass, high temperature resistance.

4.  The surface of the radiator is treated with anodic oxidation.

5.  Simple installation, easy to remove, wide range of application.

6.  Efficient heat sink: use of die-casting cold forging technology, large cooling area, good cooling effect.

7.  Shell with high-pressure die-casting aluminum, solid and stable structure, strong impact resistance, strong pit shock, shell surface paint treatment, anti-oxidation, anti-salt spray, anti-corrosion, anti-rust.

8.  Use High luminous SMD3030 light source, with higher luminous efficiency, can get about 115lm/w (for whole light) , after we test, less light failure, energy saving and better illumination effect, high stability, longer life-span.

9.  Resist Lightning surge voltage 4KV


Wide exposure,High brightness:


Product Body Parameters :

Dimension: 360mm(L)*260mm(W)*70mm(H)
Packing size: 45cm(L)*37.5cm(W)*33cm(H)
IP rating:  IP54
Housing color:  Normally Black
Light Source: 300pcs of SMD3030 C ree chips
SMD Brand: C ree
Driver Brand: Meanwell (ELG-240)

Electrical Parameters:

Input: AC 180-305V
Power: 250Watt
PF:>0.95
Driver Efficiency: >90%
THD: =<10% at full load

Optical Parameters:

Lumen Efficiency: about 115 lm/w
Total Lumen : about 28750 lm
Color Temperature: 3000K /4000K/5000K/5700K/6500K
CRI: >80 or > 90
Lens beam angle : 25°/60°/90°
Lifetime: 50,000 hrs

Certificate: CE-EMC, CE-LVD, ROHS
Warranty:  5 years (with MW driver)
