LED Canopy Light

50W LED Canopy Light

Item No.: CL-50W-N01
** 50W LED Canopy Light
** Input :AC180-305V   or  AC 90-305V
** Luminous efficiency :125 LM/W
** CCT:  3000K/4000K/5000K/6500K
** Warranty : 5 years
** CE ,ROHS,TUV approved
Add to Inquiry
Description More Models

Product Body Parameters :

Product size  : 400*240*82mm
Cut-hole size:340*180mm

IP rating :  IP65

Housing color : Usually White

Housing : Aluminum

Connect Wire:  L    Power line    N    Null line      G    Earth line

Light source : 56pcs of SMD3030 P hilips  chips

led /chip brand : P hilips

Driver brand : Mean Well



Electrical Parameters:

Input : AC90-305V or  AC180-305V

Power : 50Watt

PF:>0.95

Driver efficiency : >90%



Optical Parameters:

Lumen efficiency:125 lm/w

Total lumen : 6250lm

Color temperature: 3000K/4000K/5000K/6500K

CRI:>70 or >80 or >90

Lens beam angle :  90/120/75*145/55*155  degrees optional .
Usually use 90 degrees .

Lifetime: 50,000 hr



3 installation way : recessed , surface mounting , hanging .

Certificate :CE-EMC, CE-LVD, ROHS ,TUV.

Warranty:   5 years
During the warranty period , if the led  lights have any quality problems ,
we will surely slove the problems in the following way :
  a.  If the driver or chip is faulty , we will send new drivers or chips for free replacement .
  b.  If the lamp itself has problem , if convenient for customer to repair ,
        we will send detailed instructions with pictures step by step ,
        and if necessary send materials for free replacment, and help customer finally repair the lamp .
  c.  If the lamp itself has problem but difficult for customer to repair , we will send new lamp for free replacement .
  d.  If we found the faulty lamps quantity is more than normal level, we will assign engineers to go to buyer's company to check and repair all of the faulty lamps .
  If the lamp is damaged due to user's misuse , for example : using outdoor , wrong installation, colliding or fall down ,etc ,
  we can repair the lamp but need to charge the costs of materials replaced.

Aging test:


Packing Parameters:

1pcs /carton

Packing Dimension :460*300*150mm

Packaging Details: offer OEM services.can print your own logo on product,

  can customize the retail box packing and other things.





50W                                                                100w

150w                                                            200W

250W

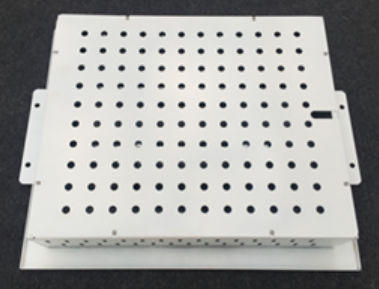

Back View



Use Mean Well driver




Application
