100-2000watt LED Sports Light

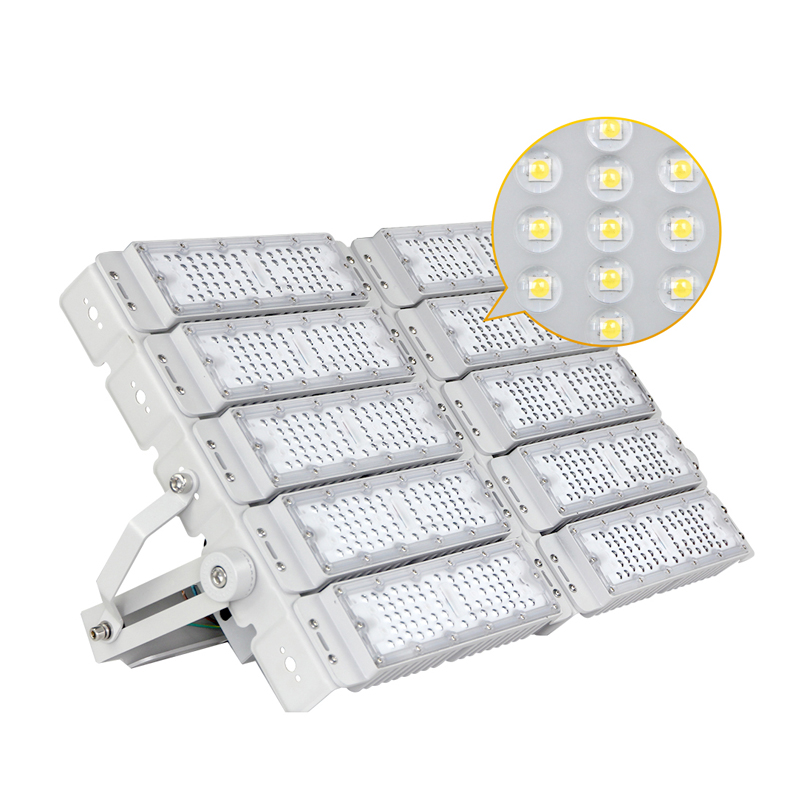

Super competitive high power modular 500W floodlight

Item No.: FL-500W-NS05
** Super competitive high power modular 500W floodlight
** Input :180-305VAC
** Lumen efficiency :135 LM/W
** CCT: 3000K,4000K, 5000K, 5700K ,6500K
** Warranty :5 years
** CE ,ROHS approved
Add to Inquiry
Description Application More HD photos

Product Body Parameters :



5 rows x 2 module each

IP rating:  IP66

Housing color: Silver /Black .  other colors customizable

Housing: Aluminum

Light source for each module:64pcs of SMD3030 chips,total 640 pcs chips.

Driver Brand: Meanwell(2pcs of  ELG-240-48A)

0-10V, 1-10V dimmable, time control, daylight sensor available





Electrical Parameters:



Input:180-305VAC (If need 90-305VAC input ,should use HLG series)

Power: 500Watt

PF:>0.95

Driver Efficiency: 92%

THD: <15% at full load





Optical Parameters:



Luminous Efficiency :  135 lm/w

Working temperature:-40°C ~60°C

Color Temperature: 3000K /4000K/5000K/5700K/6500K

CRI :>70 or >80 or >90

Lens beam angle : 3 options (30, 60 ,90 degrees)

Lifetime: 50,000 hr





Certificate: CE-EMC, CE-LVD, ROHS

Warranty:   5 years (with MW driver)

1. Using as floodlight in outdoor areas, like square, park, high poles in cross road,toll gate in high way road,
    construction sites, docks,billboard,construction lighting,landscape,venue,landmark and other public areas;
2. Using as spotlight, the angle is 30°,and the mounting angle can be adjusted;
3. Using in indoor areas with high ceiling, like warehouse, stage,work shop, super markets, ,station,factory,etc;
4. Using in stadiums,golf course, square,football court,playground, tennis court, etc.
